Darcy Flow
Darcy Flow: Theoretical Foundations
Overview
Teacher! Today's topic is about Darcy flow, right? What is it?

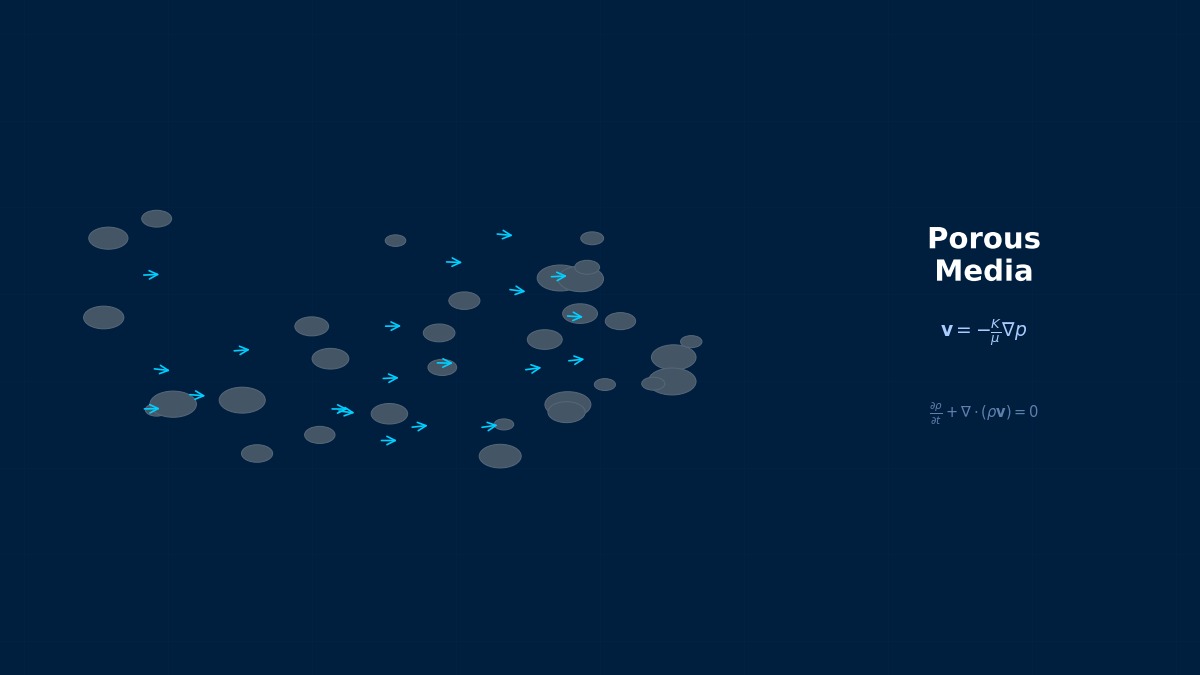

Low-speed flow within porous media. Permeability tensor K. Groundwater, oil recovery.
Governing Equations
Discretization Methods
How do you actually solve this equation on a computer?
We use spatial discretization by the Finite Element Method (FEM). We assemble the element stiffness matrix and construct the global stiffness equation.
We perform transformation to the weak form (variational form) and use formulation by the Galerkin method using test functions and shape functions. The choice of element type (low-order elements vs. higher-order elements, full integration vs. reduced integration) directly affects the trade-off between solution accuracy and computational cost.
Matrix Solution Algorithms
What exactly are matrix solution algorithms?
Solve the system of equations using direct methods (LU decomposition, Cholesky decomposition) or iterative methods (CG method, GMRES method). For large-scale problems, preconditioned iterative methods are effective.
| Solver | Classification | Memory Usage | Applicable Scale |
|---|---|---|---|
| LU decomposition | Direct Method | O(nยฒ) | Small to Medium Scale |
| Cholesky decomposition | Direct Method (Symmetric Positive Definite) | O(nยฒ) | Small to Medium Scale |
| PCG Method | Iterative Method | O(n) | Large Scale |
| GMRES method | Iterative Method | O(nยทm) | Large Scale / Non-symmetric |
| AMG Preconditioner | Preprocessing | O(n) | Very Large Scale |
So, if you cut corners in the finite element method part, you'll pay for it later. I'll keep that in mind!
Implementation in Commercial Tools
So, what software can be used for Darcy flow?
| Tool Name | Developer/Current | Main File Formats |
|---|---|---|
| Ansys Fluent | Ansys Inc. | .cas, .dat, .msh, .jou |
| Simcenter STAR-CCM+ | Siemens Digital Industries Software | .sim, .java, .csv |
| COMSOL Multiphysics | COMSOL AB | .mph |
| OpenFOAM | Open Source (OpenCFD/ESI, OpenFOAM Foundation) | Dictionary files (blockMeshDict, etc.), .foam |
Vendor Lineage and Product Integration History
Do the origins of each software have dramatic stories?
Ansys Fluent
Next is about Ansys Fluent. What's the content?
Developed by Fluent Inc. Acquired by Ansys in 2006. A general-purpose CFD solver based on unstructured grids.
Current Affiliation: Ansys Inc.
Simcenter STAR-CCM+
Next is about Simcenter STAR. What's the content?
Developed by CD-adapco. Acquired by Siemens in 2016 and integrated into the Simcenter brand. Features polyhedral meshes.
Current Affiliation: Siemens Digital Industries Software
After hearing this, I finally understand why development is important!
COMSOL Multiphysics
Tell me about "COMSOL Multiphysics"!
Founded in Sweden in 1986. Started as FEMLAB with MATLAB integration, later renamed to COMSOL. Strong in multiphysics.
Current Affiliation: COMSOL AB
Wow, the story of development is super interesting! Tell me more.
File Formats and Interoperability
When converting models between different solvers, attention must be paid to the correspondence of element types, compatibility of material models, and differences in the representation of loads and boundary conditions. Particularly, higher-order elements and special elements (cohesive elements, user-defined elements, etc.) often cannot be directly converted between solvers.
I see... Formats seem simple at first glance, but they're actually very deep, aren't they?
Practical Considerations
Are there any "field wisdom" things not found in textbooks?
Verification of mesh convergence, validation of boundary condition reasonableness, and sensitivity analysis of material parameters are extremely important.
- Mesh dependency verification: Confirm convergence with at least 3 levels of mesh density.
- Boundary condition validity: Setting physically meaningful constraint conditions.
- Result verification: Comparison with theoretical solutions, experimental data, and known benchmark problems.
Wow, Darcy flow is really deep... But thanks to your explanation, I've been able to organize my thoughts a lot!
