Lagrangian equations of motion solved in real time via RK4. Adjust arm lengths, masses, and initial angles to watch chaotic trajectories evolve. Use the trajectory comparison mode to see how a 0.001° difference rapidly diverges.
Parameters
Length L₁
m
Length L₂
m
Mass m₁
kg
Mass m₂
kg
Initial angle θ₁
°
Initial angle θ₂
°
Damping (air drag)
Presets
Energy & Controls
Chaotic regime (large angle)
Results
—
Kinetic Energy (J)
—
Potential Energy (J)
—
Total Energy (J)
0
Trail points
Pend
Blue = pendulum 1 (main) | Red = pendulum 2 (θ₁ + 0.001°, compare mode only)
Theory & Key Formulas
$L = T - V$
$T$: kinetic energy, $V$: gravitational PE
Two coupled ODEs for $\ddot{\theta}_1, \ddot{\theta}_2$ solved by RK4
What is a Chaotic Double Pendulum?
🙋
What exactly makes a double pendulum "chaotic"? It's just two rods swinging, right?
🎓
Basically, it's because the system is extremely sensitive to its starting conditions. In practice, even a tiny change in the initial angle you set in this simulator leads to a completely different swinging path after a few seconds. Try moving the "Initial angle θ₂" slider by just half a degree and run the simulation again to see it diverge.
🙋
Wait, really? So how do we even predict its motion if it's so unpredictable? What math is the simulator using?
🎓
We use Lagrangian mechanics, which is perfect for complex, constrained systems like this. The simulator calculates the kinetic ($T$) and potential ($V$) energy of both masses based on the lengths and angles you set. Then it uses the Euler-Lagrange equation to get the equations of motion. But these equations are too complex to solve by hand, so we use a numerical method called RK4 integration to compute the motion step-by-step.
🙋
So the "Damping" slider is for air drag? Does that make it less chaotic?
🎓
Good observation! Damping adds a small friction force proportional to the angular velocity. It doesn't remove the underlying chaotic nature—the sensitivity to initial conditions is still there—but it steadily drains energy from the system. Try setting damping to zero and see how it swings wildly for much longer. A common case in the real world is a robotic arm in a vacuum vs. in air.
Physical Model & Key Equations
The core of the simulation is the Lagrangian ($L$), defined as the difference between the total kinetic energy ($T$) and total gravitational potential energy ($V$) of the system.
$$L = T - V$$
Here, $T$ and $V$ are expressed in terms of the generalized coordinates $\theta_1$ and $\theta_2$ (the angles), and the parameters you control: lengths $L_1$, $L_2$ and masses $m_1$, $m_2$.
Applying the Euler-Lagrange equation for each coordinate yields two coupled, second-order differential equations for the angular accelerations $\ddot{\theta}_1$ and $\ddot{\theta}_2$.
$Q_i$ represents generalized forces, which is where your "Damping" parameter enters the model. These complex equations are what the RK4 (Runge-Kutta 4th order) numerical integrator solves at every time step to update the pendulum's state.
Frequently Asked Questions
A double pendulum is a chaotic system, where tiny differences in initial conditions grow exponentially over time. This is a characteristic of chaos known as the 'butterfly effect.' Using the simulator's 'two-trajectory comparison' function, you can visually observe how initially almost identical trajectories gradually diverge.
The RK4 method (fourth-order Runge-Kutta method) is used because it offers an excellent balance between accuracy and computational cost. The equations of motion for a double pendulum are nonlinear and have no analytical solution, so numerical integration is necessary. The RK4 method has small errors and can stably track chaotic trajectories. While more accurate methods exist, RK4 is suitable for real-time rendering at practical speeds.
Changing the length or mass alters the system's natural frequencies and energy distribution, affecting how chaos manifests and the pattern of trajectories. For example, making the two lengths equal tends to reveal more regular motion, while asymmetry expands the chaotic region. If the mass ratio is extreme, one pendulum's motion will dominate the other.
If the time step for numerical integration is too large, errors accumulate, causing energy to not be conserved and the system to diverge. In the simulator settings, reduce the time step (e.g., to 0.001 seconds or less) or lower the rendering speed to prioritize calculation accuracy. Additionally, if the initial angle is extremely large (e.g., 179 degrees), the pendulum rotates at high speed, increasing numerical errors, so setting it within 90 degrees is recommended.
Real-World Applications
Robotic Arm Design & Control: Multi-segment robotic manipulators use the same Lagrangian dynamics as this pendulum. Engineers use CAE software like ADAMS to simulate these systems before building them, ensuring the motors are strong enough and the control algorithms can handle the complex, coupled motion.
Vehicle Suspension Analysis: The double pendulum model is a simplified analogy for certain suspension components. Studying its chaotic response helps engineers understand how small imperfections in manufacturing or wear can lead to unpredictable vibrations (like shimmy) in real vehicles.
Spacecraft Attitude Dynamics: Satellites with flexible appendages (like solar panels or booms) can exhibit chaotic rotational dynamics. Understanding this sensitivity is crucial for designing stable attitude control systems that must work reliably for years.
Biomechanics of Human Motion: The swinging motion of limbs during walking or running can be modeled as linked pendulums. Analyzing the stability and energy transfer in these systems helps in designing better prosthetics and understanding athletic performance.
Common Misconceptions and Points to Note

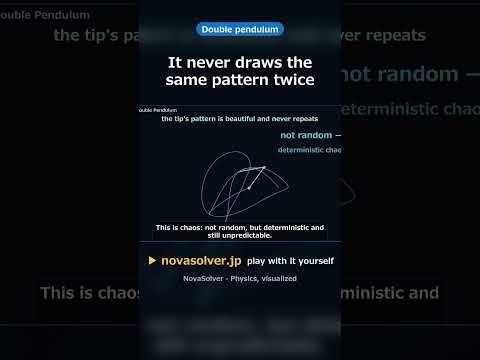

First, understand that chaos does not equal randomness. The motion in this simulator is completely deterministic once the initial conditions are set. However, even a minuscule difference in initial values (e.g., 30.0 degrees vs. 30.0001 degrees for θ₁) gets amplified exponentially in a short time, merely making it appear unpredictable. When modeling for practical applications, avoid hastily concluding that "simulation results are unreliable because they vary."
Next, be aware of pitfalls in parameter settings. For instance, if you set the mass m₂ of the lower pendulum to an extremely large value (e.g., 10 times that of the upper pendulum), the numerical calculations can become unstable, potentially causing the results to diverge. This happens because the coefficients in the simultaneous equations become extreme, amplifying numerical errors explosively. In physical design too, weight balance is a critical factor directly linked to simulation stability.
Also, pay attention to how you interpret the "Energy Conservation" display. Even with the damping coefficient set to 0, it's normal for energy to gradually increase or decrease due to numerical calculation errors. However, if it changes abruptly, your time step Δt might be too large. For example, try reducing Δt from 0.01 seconds to 0.001 seconds; the accuracy of energy conservation should improve significantly. This is an excellent example to experience the trade-off between computational cost and accuracy.
