Steady-State Conduction with Internal Heat Generation

Category: Thermal Analysis | Integrated 2026-04-06

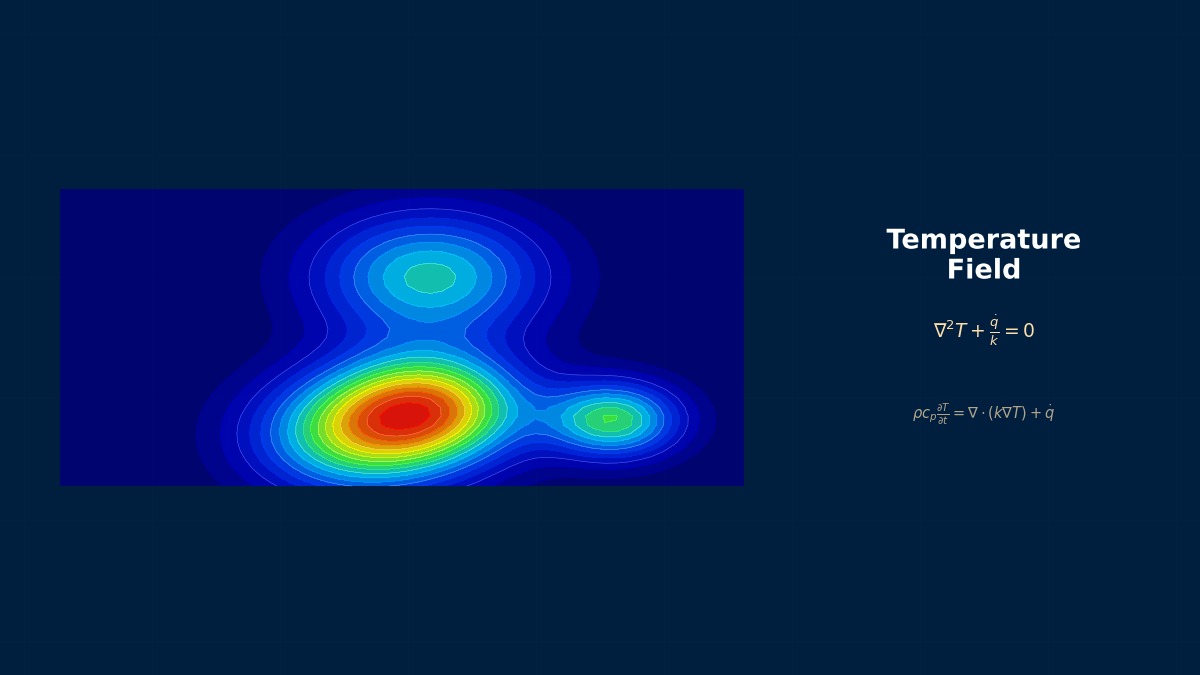

CAE visualization for heat generation steady theory - technical simulation diagram
Steady-State Conduction with Internal Heat Generation

Steady-State Conduction with Internal Heat Generation: Theoretical Foundations

Physics of Internal Heat Generation

๐Ÿง‘โ€๐ŸŽ“

Professor, in what situations does internal heat generation occur?


๐ŸŽ“

It appears in various forms such as Joule heating from electrical resistance, decay heat from nuclear fuel, and chemical reaction heat. All are expressed as the volumetric heat generation rate $\dot{q}_v$ [W/m$^3$].


Governing Equation for a Flat Plate

๐ŸŽ“

The governing equation for a flat plate (thickness $2L$, both surfaces at the same temperature $T_s$) with uniform internal heat generation $\dot{q}_v$ is


$$k\frac{d^2T}{dx^2} + \dot{q}_v = 0$$

The solution is a parabolic distribution.


$$T(x) = T_s + \frac{\dot{q}_v}{2k}(L^2 - x^2)$$

The center temperature is $T_{\max} = T_s + \dot{q}_v L^2 / (2k)$.


๐Ÿง‘โ€๐ŸŽ“

It makes intuitive sense that it becomes a parabola. The center is the hottest.


๐ŸŽ“

The important point is that $T_{\max} \propto L^2$. Doubling the plate thickness quadruples the center temperature rise. Making it thinner is the most effective cooling measure.


Case of a Cylinder

๐ŸŽ“

For a cylinder of radius $R$ (outer surface temperature $T_s$)


$$T(r) = T_s + \frac{\dot{q}_v}{4k}(R^2 - r^2)$$

Center temperature $T_{\max} = T_s + \dot{q}_v R^2 / (4k)$. Compared to $2k$ for the plate, it's $4k$ for the cylinder, meaning the cylinder cools more efficiently.


Case of a Sphere

๐ŸŽ“

For a sphere (radius $R$)


$$T(r) = T_s + \frac{\dot{q}_v}{6k}(R^2 - r^2)$$

The denominator is even larger at $6k$. The larger the surface area/volume ratio, the higher the cooling efficiency.


Shape$T_{\max} - T_s$Surface Area/Volume
Flat Plate$\dot{q}_v L^2/(2k)$$1/L$
Cylinder$\dot{q}_v R^2/(4k)$$2/R$
Sphere$\dot{q}_v R^2/(6k)$$3/R$
๐Ÿง‘โ€๐ŸŽ“

So the sphere has the best cooling efficiency.


๐ŸŽ“

That's because a sphere has the maximum surface area for the same volume. However, the story becomes a bit more complex when convection conditions are included.

Coffee Break Coffee Break Talk

Governing Equation for Internal Heat Generation

The steady-state heat conduction equation with internal heat generation is โˆ‡ยฒT + qฬ‡/k = 0. The heat generation density spans over three orders of magnitude, from nuclear fuel pellets (qฬ‡โ‰ˆ10โธ W/mยณ) to Li-ion battery cells (qฬ‡โ‰ˆ10โต W/mยณ). The importance of this equation surged in the 1940s with nuclear reactor design.

Computational Methods for Steady-State Conduction with Internal Heat Generation

Implementation in FEM

๐Ÿง‘โ€๐ŸŽ“

How do you set up internal heat generation in FEM?


๐ŸŽ“

Set the volumetric heat generation rate for the elements. In FEM formulation, the following is added to the element heat load vector:


$$f_i^e = \int_{\Omega_e} \dot{q}_v N_i \, d\Omega$$

where $N_i$ is the shape function. For uniform generation, $\dot{q}_v \cdot V_e / n_{\text{node}}$ is equally distributed to each node.


๐Ÿง‘โ€๐ŸŽ“

How do you set it in Ansys?


๐ŸŽ“

Set it using the BFE (Body Force on Element) command.


```

BFE,ALL,HGEN,,1e6 ! Apply 1e6 W/m3 to all elements

```


In the Workbench GUI, apply the Internal Heat Generation condition to the Body. In Abaqus, set it with *DFLUX, BF$(\dot{q}_v)$.


Handling Non-Uniform Heat Generation

๐ŸŽ“

In real problems, the heat generation rate is often spatially non-uniform.


ExampleHeat Generation DistributionModeling
Electrical ResistorUniform ($I^2R/V$)Constant
Nuclear Fuel RodCosine distribution (axial)Table/Function input
Electronic Circuit BoardLocal (IC parts only)Define Body per component
Induction HeatingConcentrated at skin depthCoupled with electromagnetic analysis
๐Ÿง‘โ€๐ŸŽ“

Induction heating requires coupling with electromagnetic analysis, I see.


๐ŸŽ“

Calculate the eddy current density using Ansys Maxwell or COMSOL AC/DC module, then input $\dot{q}_v = J^2/\sigma$ (Joule heating density) into the thermal analysis. In Ansys, data transfer is automated via Workbench's coupling function.


Mesh Considerations

๐ŸŽ“

In internal heat generation problems, if the mesh is too coarse, temperature peaks get averaged out.


๐Ÿง‘โ€๐ŸŽ“

So sufficient mesh is needed to accurately capture the center temperature.


๐ŸŽ“

Correct. Concentrate mesh in areas with the maximum temperature gradient (near boundaries). For a cylinder, the gradient is zero near the center so it can be coarse, but the area near the outer surface should be fine.

Coffee Break Coffee Break Talk

Analytical Solution for Heat Generation in a Flat Plate

For a flat plate of thickness 2L with uniform generation qฬ‡, the center temperature is Tmax = Ts + qฬ‡Lยฒ/(2k). For a 10mm thick silicon wafer (k=150 W/mยทK) with qฬ‡=10โถ W/mยณ, the center temperature rise is only 0.08Kโ€”a calculation example showing its high uniformity.

Steady-State Conduction with Internal Heat Generation in Practice

Application Example: Joule Heating in an Electrical Wire

๐Ÿง‘โ€๐ŸŽ“

I'd like to see a concrete calculation example.


๐ŸŽ“

Let's consider an AWG18 copper wire (diameter 1.02mm, $\rho_e = 1.7 \times 10^{-8}$ ฮฉm) with a 10A current.


ParameterValue
Cross-sectional area $A$$8.17 \times 10^{-7}$ m$^2$
Resistance $R/L$0.0208 ฮฉ/m
Heat generation $I^2R/L$2.08 W/m
$\dot{q}_v$$2.55 \times 10^6$ W/m$^3$
$T_{\max} - T_s$$\dot{q}_v R^2/(4k) = 0.0016$โ„ƒ
๐Ÿง‘โ€๐ŸŽ“

It only rises by 0.0016โ„ƒ?


๐ŸŽ“

That's because copper's $k = 398$ W/(m K) is very large. The temperature difference is dominated not by the wire interior but by the insulation and external convection. In other words, the important factor in wire thermal design is the outer surface temperature of the insulation; the temperature distribution inside the copper can be considered almost uniform.


Application Example: Nuclear Fuel Rod

๐ŸŽ“

For a nuclear reactor fuel rod (UO$_2$ pellet, $k = 3$ W/(m K), $\dot{q}_v = 4 \times 10^8$ W/m$^3$, radius 5mm)


$$T_{\max} - T_s = \frac{4 \times 10^8 \times (0.005)^2}{4 \times 3} = 833\text{โ„ƒ}$$

๐Ÿง‘โ€๐ŸŽ“

A 833โ„ƒ temperature difference? That's on a completely different scale.


๐ŸŽ“

That's because UO$_2$ has low $k$ and $\dot{q}_v$ is orders of magnitude larger. Ensuring the fuel center temperature does not exceed the melting point (about 2800โ„ƒ) is the core of safety design.


Verification Points

๐ŸŽ“

Verify internal heat generation problems by checking the following.


  • Shape of temperature distribution: Parabolic distribution for uniform generation
  • Location of maximum temperature: Is it at the symmetry center?
  • Energy balance: Total heat generation $\dot{q}_v \times V$ = Heat dissipation from surfaces
  • Comparison with theoretical solution: Check calculations for simple shape parts

๐Ÿง‘โ€๐ŸŽ“

Checking the energy balance seems the most reliable.


๐ŸŽ“

In Ansys, check the Reaction Summary in the t
