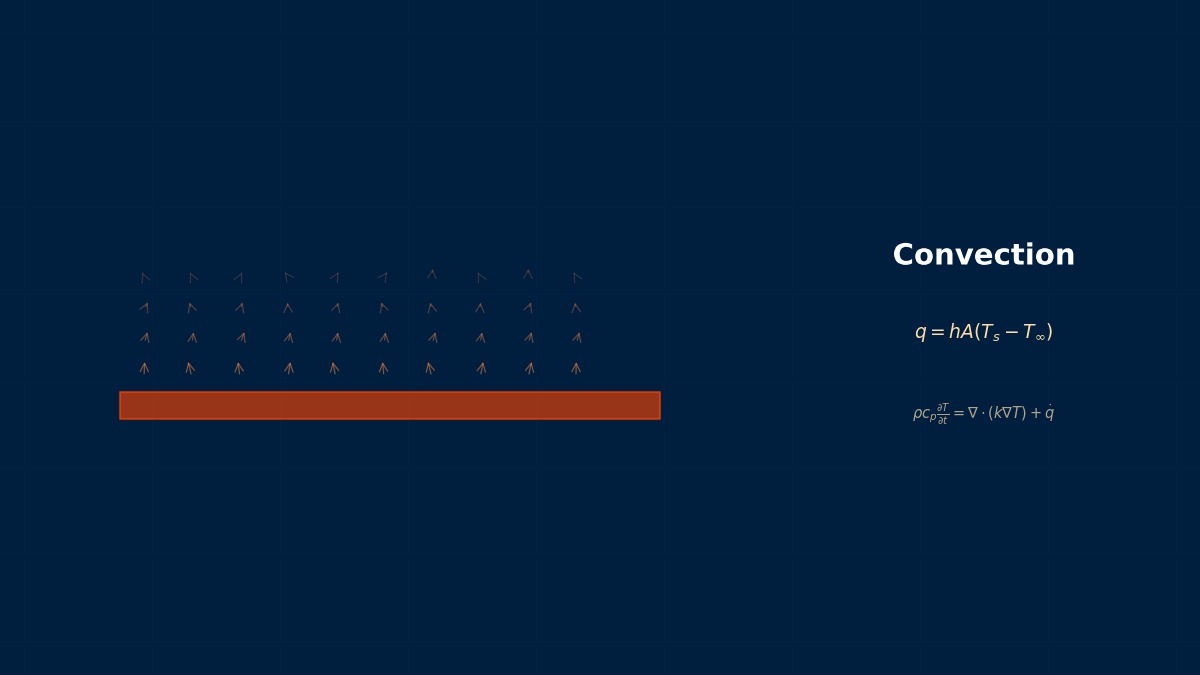

CAE visualization for compact heat exchanger theory - technical simulation diagram
Compact Heat Exchanger

Theory: large area in a small volume

Overview

🙋

Why do heat exchangers like radiators have such fine, closely packed fins?

🎓

Air's heat transfer coefficient is tens of times lower than water's, so the air side must make up with area. Fine, densely packed fins exceed 1,000 m²/m³ of area per volume. Cutting fins into offset strips also breaks up boundary layers and raises h — but makes flow harder, increasing pressure drop. Organising heat transfer and pressure drop as two numbers, j and f, is the basis of compact heat exchanger design. Let's calculate an offset strip fin.

j and f factors

$$ j = \frac{h}{G c_p}Pr^{2/3},\qquad \Delta p = 4f\,\frac{L}{D_h}\,\frac{G^2}{2\rho},\qquad Re = \frac{G D_h}{\mu} $$

$G$ is mass velocity at the minimum flow area and $D_h$ the hydraulic diameter, 2.33 mm for this offset strip fin (1.5 mm spacing, 6 mm height, 0.1 mm thickness, 3 mm length). j and f come from the Manglik–Bergles correlations.

Crossflow effectiveness

$$ \varepsilon = 1 - \exp\!\left[\frac{NTU^{0.22}}{C_r}\left(e^{-C_r NTU^{0.78}} - 1\right)\right],\qquad NTU = \frac{UA}{C_{min}},\quad C_r = \frac{C_{min}}{C_{max}} $$

An approximation for crossflow with both fluids unmixed — the arrangement of most radiators and air-conditioning coils.

Coffee Break Trivia

Kays and London's data book

Compact heat exchanger design advanced greatly with Kays and London's Compact Heat Exchangers, compiled in the US in the 1950s. They measured many fin geometries and charted j and f against Reynolds number, so designers could pick a similar geometry and estimate performance immediately. The Manglik–Bergles correlations for offset strip fins (1995) express much of that experimental data in single formulas.

Worked examples

Example 1: offset strip fin (air, 50 °C)

Reynolds numberVelocityjfhvs plain platesPressure gradient
3002.3 m/s0.02720.13188 W/m²K1.20.66 kPa/m
5003.9 m/s0.02100.090113 W/m²K1.51.26 kPa/m
1,0007.7 m/s0.01500.056161 W/m²K2.13.14 kPa/m
2,00015.4 m/s0.01090.042234 W/m²K3.19.31 kPa/m
3,00023.2 m/s0.00910.037294 W/m²K3.918.4 kPa/m

"Plain plates" compares with 76 W/m²K for a plain 1.5 mm channel in fully developed laminar flow (Nu = 8.23). Area density is about 1,560 m²/m³ of passage volume.

Example 2: crossflow (both unmixed) effectiveness

NTURatio 0.5Ratio 1Counterflow, ratio 1
0.50.3520.3150.333
10.5450.4690.500
20.7390.6150.667
30.8280.6840.750
50.9050.7490.833
🙋

Raising air speed increases h, but pressure drop rises much faster.

🎓

From Re = 1000 to 3000, h rises 1.8 times but pressure gradient 5.9 times; fan power, the product of pressure drop and flow, rises about 18 times. So compact exchangers are normally run at low air speed, adding area or frontal width rather than speed. Offset strip fins beat plain fins because they transfer more heat for the same pressure drop, but the advantage shrinks at low Reynolds number (1.2 times at Re = 300). Near a capacity ratio of 1, crossflow effectiveness levels off: even NTU 5 gives only 0.75.

Design tips

  1. Choose fins using j and f, comparing at equal pressure drop (fan power).
  2. Include fin efficiency in the effective area.
  3. Use the ε-NTU relation for the actual flow arrangement (counterflow, crossflow).
  4. Consider frontal velocity maldistribution; uneven flow lowers performance.
  5. Fouling or frost blocking the gaps sharply increases pressure drop.
Coffee Break Trivia

“Fins blocked by frost”

In a cold-store evaporator, cooling deteriorated over time: moisture in the air frosted on closely spaced fins, blocking the gaps and greatly reducing airflow. Compact, narrow fins are vulnerable to frost and fouling. Widening the spacing only on the frost-prone inlet side and adding periodic defrost cycles solved it. Designing for small volume can backfire unless the operating environment is considered.

Common mistakes

Mistakes and fixes

MistakeEffectFix
Comparing heat transfer onlyExcessive fan powerCompare at equal Δp
Using frontal area for GWrong Re and hMinimum flow area
Ignoring flow arrangementWrong effectivenessCrossflow relation
Fin efficiency = 1Area overratedCompute efficiency
Ignoring frost and foulingPerformance lossAllow margin in spacing
🙋
